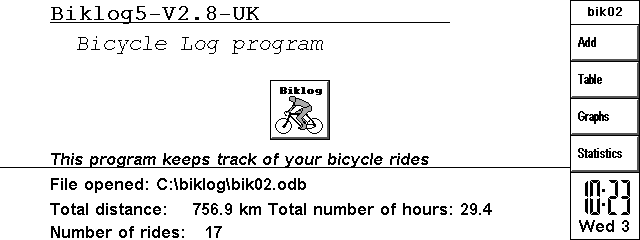

Screen shots from     Biklog5






















BIKLOG

Summary: My Freeware bicycling log software for the Psion

BIKLOG is a program made for bicyclists who like to keep track of their bicycle rides during time. It is not meant to be used during the ride as a cycle computer but as an extension of it to store the cycle computer data and other data and as a tool to analyse the bicycle rides over time.

There are two versions , Biklog3 for the series 3x and Biklog5 for the Series 5 and Revo (Plus)/Mako. The last version is also suited for the Series 7 or netBook, but only in the last version 3.2 the colour capabilities of these last two machines has been fully implemented. Both versions has provisions for up to 4 different bicycles and up to 5 ride evenements.

With some renaming of the definitions of the type of bicycles used and riding type, it may be used even for thriathletes by renaming the bicycle names in "swimming", "biking", and "running" and adapting the bicycle ride names into appropriate terms like "training", "race", "intervals" etc.

Features:


menu structure of BIKLOG5

    • Perfect for bicyclists, touring or racing with multiple bicycles and ride types 8:)
    • Tabular output in long or short format

table structure of BIKLOG5

    • Statistics per bicycle, ride and time period.

statistics in BIKLOG5

    • Different type of plots possible of several parameters per bicycle, all bicycles and time interval (day, week or month]

graphs in BIKLOG5

    • Besides the basic features like adding, editing, sorting and deleting, it has also additional options like forecasing and an internal editing mode for diary-type annotations.

other properties of BIKLOG5

  • And it is Freeware!

Biklog5 (V3.2) for the Psion 5 and Revo has the same features as Biklog3 plus:

  1. SI units or Imperial units
  2. last file remembered
  3. Zooming possible in TABLE mode
  4. Statistics of current file directly visible on main screen
  5. adaptation to REVO and Series 7/netBook screen size
  6. Preferences stored in separate configuration file.
  7. More statistics: km or miles per month and bicycle type (improved!)
  8. More graphical output : total, mean and cumulative time or distance, and average speed
  9. Graphical output now also for different bicycle events and other fields
  10. Setting Goals in terms of number of km (or mi) ridden and number of rides
  11. Filtering on bicycle types and on time periods possible in tabular/graphical and statistical output (improved!)
  12. printing of tabular, graphical and statistical output, look here for an example printout (PDF document)
  13. zooming capabilities in TABLE output
  14. export and import of data to or from text file
  15. forecasting of number of rides and Km/Mi ridden at end of year
  16. diary editing mode for longer annotations at ride events
  17. 7 more fields available: starting time, condition of ride + 4 real and 1 logical fields to be defined by user
  18. englishmultiple languages: English, Dutch , German and French !
  19. Colour graphs and icons available for Series 7/netBook machines!(NEW in 3.2!)






Future improvements:
  • additional table for maintenance expenses (option)



ACKNOWLEDGEMENTS

Thanks to: Neil K Bee for the use of some of his icons, Damien Lewis of PocketIQ for his IQGRID module, Twiddlebit for the gprinter.opx, Martin Zeddies and Phillipe Bricka for respectively the German and French translations, and all the customers of BIKLOG3 and BIKLOG5, giving me suggestions for improvements.

SAILLOG

Summary: My Freeware sailling log software for the Psion

SAILLOG is a small utility primarily intended to track your personal sailing experience, based on the Royal Yachting Asscociation´s paper logbooks and qualification requirements. If you own your own boat, SAILLOG will also allow you to log the cumulative miles and engine hours of your boat, and gives you a reminder when service intervals arise. If you charter your boat to a third party, these details can also be logged in the vessel record without affecting your personal sailing totals.


Features:


features of SAILLOG

    1. Input parameters for each sailing event:
        departure date
        departure time
        arrival date
        arrival time
        name of vessel
        name of skipper
        cruise description
        logged distance
        night time
        engine hours
        (weather) condition (1-6 user defined choices)
        Own boat (Yes,No)
        Tidal water (Yes,No)
        Single-handed (Yes,No)
        Comments (max 40 characters)
        Diary file input (max 255 characters)

    2. Output modes:
      • Table (all parameters, except diary file input)
      • Personal (# of cruises; Total hours; Total distance; Total nighthours)
      • Vessel (# of cruises; Total hours; Total distance; Total engine hours)



    1. SI units or Imperial units
    2. Last file remembered
    3. Zooming possible in TABLE mode
    4. Adaptation to REVO and Series 7/netBook screen size
    5. Preferences stored in separate configuration file.
    6. Filtering on multiple input parameters and on time periods possible in tabular/personal and vessel output
    7. Printing of tabular output, look here for an example printout (PDF document)
    8. Zooming capabilities in TABLE output
    9. Export and import of data to or from text file
    10. Diary editing mode for longer annotations at sailing events
    11. Reminding on upcoming engine inspection intervals
    12. Colour icons available for Series 7/netBook machines
  • available for Series 5(mx)/MC218/REVO/MAKO/Series7 and netBook machines (Not for series 3(xx) or Osaris)
  • And it is Freeware!






menu structure of SAILLOG


Future improvements:
  • Depending on customer input!

How to use the EPOC emulator

netbook





1. Introduction

I used the Epoc Emulator in the last years up to now primarily for development of my psion programs like Biklog5 and Saillog. Besides the regular Epoc emulator suited for the series 5xx machines I also have installed the Revo emulator, which is essentially a package of special files installed over a separate EPOC emulator file structure.


Nowadays, since my psion machines (revo, series 5 and Netbook, are ageing and becoming more instable due to screen cable or battery problems, I am using more a more the Epoc emulator on my windows PC, while for outside home use I have bought a Asus EEEPC 901 netbook running Ubuntu. The EPOC emulator I run under the WINE environment


In the remaining of this page I will try to explain how to obtain and install the emumlator on your PC or Netbook under windows or under Linux.



2. How to obtain

(A) The regular SYMBIAN OS V5 OPL emulator can be obtained from the Teklogix website:
http://www.psionteklogix.com/teknet/pdk/netpad-pdk/SDKS/opl.zip


Note that you have to registrate yourself (Free!) before you can have access to different SDK's containing the emulator. Although it is mentioned that it is meant for the Netpad, you can use it also for the Series5 or netbook machines. Choose the OPL version if you also wants to use it for writing OPL programs. It is about 26.8 Mb in size!


You can also choose the SYMBIAN OS V5 SDK for Java if you don't want to develop OPL programs but want to have the smallest download package (12 MB). The latter you can download directly from (after registry): http://www.psionteklogix.com/teknet/pdk/netpad-pdk/SDKS/java.zip


(B) You can download it directly from my website here:

Download Symbian OS V5 SDK {OPL_V5.zip} for the SYMBIAN OS V5 SDK files

and download this file {netbookemul.zip} for the customatisation of your Netbook emulator.

It also includes the WINS versions of several OPX files, courtesy of Chris Handley. Additionally it contains some alternative screen images from Damian Walker, which I found at the PDAStreet Psion Forum.


3. How to install

Installing the Psion ER5 SDK:


On a windows PC or on a netbook under windows:

  1. extract all the files in the downloaded ZIP file in a temporarily directory
  2. Execute the setup file, setup.exe, and if you are not interested in writing your own OPL programs, don't install the PERL files
  3. Files will be installed to the X:\epoc32\ directory (Where X is the driveletter where you installed the ER5 emulator)
  4. If you are not interested in writing OPL files you can delete the directories: Aiftools, Alleppo and Epoc32
  5. You can also delete the folder SYSDOC if you don't want to have the documentation files on the emulator and the OPL programming language


On a Linux PC or netbook:

  1. install WINE first, if WINE is not present
  2. extract all the files in the downloaded ZIP file in a temporarily directory in the drive-c directory under the .wine directory
  3. Execute the setup file, setup.exe, under WINE and if you are not interested in writing your own OPL programs, don't install the PERL files
  4. Files will be installed to the /home/user/.wine/drive_c\directory
  5. If you are not interested in writing OPL files you can delete the directories: Aiftools, Alleppo and Epoc32
  6. You can also delete the folder SYSDOC if you don't want to have the documentation files on the emulator and the OPL programming language

To customize the PSION ER5 emulator to your machine please do:

  1. Install the Netbookemul.zip ZIP file in the directory where the EPOC32 directory has been installed.
  2. Open this file and unzip the contensts into the X:\EPOC32\ directory, overwriting any files that are already in that directory.
    Ensure that the unzip program's "Path information" or "Use folders" option is checked, so that the files get copied into the correct subdirectories.

4. How to use In the Epoc/tools/ directory you will find 9 batch files to start up the Emulator, each controlling their own screen configuration. They are together with the details of the configuration:



name file screen width x screen height (internal) window width x window height Remarks image
m320_200.bat 320 x 200 342 x 222
m480_160.bat 480 x 160 504 x 184
m640_240 640 x 240 666 x 266
m640_320 640 x 320 675 x 346
m640_480 640 x 480 666 x 506 minimalistic, but best suited for 8.9 " screen
e32-sys.bat
e32-vga.bat
e32-lrg.bat 800 x 600 944 x 719
mcustom.bat 800 x 600 944 x 719 best suited for large screen monitor






Please Dit e-mailadres wordt beveiligd tegen spambots. JavaScript dient ingeschakeld te zijn om het te bekijken.if you need more information




 ATMOS

Summary: My Freeware Atmos is a small utility allowing you to calculate the relationships between geometric altitude, and pressure, density and temperature of the (1976) Standard Atmosphere.
Singular output is possible as function of altitude, relative density or relative pressure (to sealevel)

or in a tabular format as function of the start altitude level, the number of steps and stepsize:

Each parameter may be defined in SI or English units and can be stored.

For both the Series 3 and Series 5 is a different version: respectively: ATMOS3 and ATMOS5

History :


  • Version 2.2 (23-12-02] Conversions between equivalent and true airspeed added + small bug fixes.
  • Version 2.1 (22-07-02] Now also suitable for the Revo (Plus) and Mako!
  • Version 2.0 (08-11-99] Ported for the Series 5
  • Version 1.1 (22-02-99) Better event handling and extended help function.
  • Version 1.0 (02-01-99) Original version.
